The Ruud Ultra Series™ High Efficiency Two-Stage UASL/UARL-JEC condensing unit was designed with performance in mind. These units offer comfort, energy conservation and dependability for single, multi-family and light commercial applications. The Ruud Ultra Series™ Two-Stage UASL/UARL- JEC condensing units are the result of an ongoing development program for improved efficiencies. With system SEER’s as high as 19.5, these units continue a tradition of delivering high efficiency. These units also contain the most advanced alternate refrigerant which contains no chlorofluorocarbons (CFCs), or hydro-chlorofluorocarbons (HCFCs), or other compounds that may leak from air conditioning systems and potentially harm the protective ozone layer of the Earth’s atmosphere.
The Comfort Control2 System
The Comfort Control2 System™ provides over 32 on-board diagnostics and fault history codes by detecting system and electrical problems. The integrated diagnostics with Active Protection™ prevents compressor operation when potentially harmful conditions are detected. It sends “Call for Service” alert notification to the thermostat to alert you of required service.
Serial Communication Enhanced
When installed with a Serial Communicating Air Handler and user interface control Series 500 thermostat this unit offers auto-configuration, diagnostic messaging and full communicating capability, to increase your home comfort even further.
Unit can be conventionally wired using 24VAC with non-communicating Ruud Ultra air-handlers or furnaces with non-communicating thermostat. If you prefer to keep your old thermostat, in most cases, this A/C will allow you to do so.
A compressor sound blanket is standard to provide your unit with quieter unit operation. Units are equipped with a reliable Two-Stage compressor for precise temperature control with an On-Demand dehumidification feature. When matched with variable speed gas furnace or air-handler, the system adjusts airflow to help control humidity for unsurpassed comfort in the cooling mode.
The industries lowest profile design at just 33 inch [864mm] maximum height makes unit less noticeable in your yard and is easily installed leaving room for optional equipment and optimal access for maintenance.
Cabinet and Design
Attractive, louvered wrap-around jacket protects the coil from yard hazards and weather extremes. Top grille is steel reinforced for extra strength. Cabinet is powder painted for all weather protection. The units are constructed with painted galvanized steel cabinets for added reliability and durability. All controls are accessible by removing one service panel. Removable top grille provides access to the condenser fan motor and condenser coil, for an easier time with serviceability. Combination Grille/Motor Mount secures the motor to the underside of the discharge grille. The grille protects the motor windings and bearings from rain and snow.

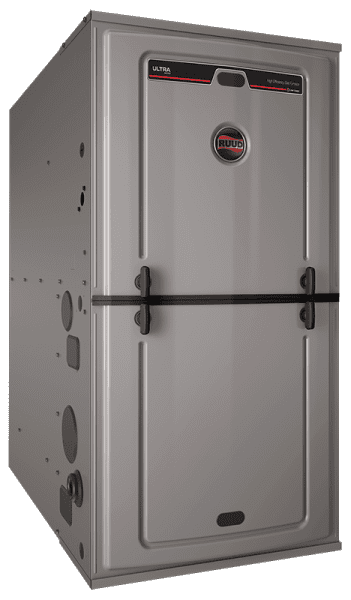

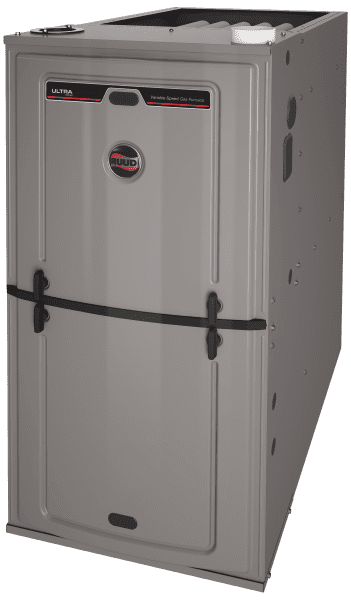

The Ruud RGGE, RGFG, and RGJF Ultra Series™ 90 Plus Communicating Modulating gas furnaces equipped with the Comfort Control2 System & Contour Comfort Control line of Upflow/Horizontal, & Dedicated Downflow, are designed for installation in closets, alcoves, utility rooms, or attics.
The Comfort Control2 System
Provides advanced service-ability with over 28 on-board diagnostics & fault history codes by detecting system & electrical problems. “Call for Service” alert notification is sent to the thermostat to alert the homeowner of required service. This includes dual seven segments LED & diagnostic history for easier system diagnostics & troubleshooting.
Serial Communication Enhanced
When installed with a Serial Communicating Condensing Unit & user interface control 500 Series thermostat this unit offers 4 or 2 wire installation, auto-configuration, & diagnostic messaging with full communicating capability.
Motor and Blow Compartment
Energy efficient & quiet ECM 3.0 communicating motor. An insulated blower compartment, a slow-open gas valve, specially designed 2-speed induced draft motor & blower motor make it one of the most reliable & quietest furnaces on the market today.
When used with a modulating thermostat, modulation rate between 40% and 100% of total capacity.
When used with a two-stage thermostat, furnace operates at 40% on first stage, & stages up to 65%, then 100% for second stage.
When used with a single-stage thermostat, furnace functions as a three stage furnace operating at 40%, 65% & 100% of total capacity.

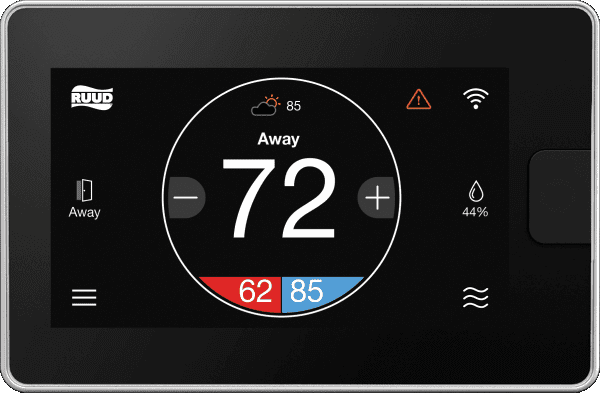

The Ruud EcoNet™ Control Center, our intuitive, integrated air and water management system, customizes comfort while cutting energy costs*—from anywhere.
Built with our 360°+1 Philosophy for optimal Performance, Integration, Installability and Serviceability. Control from anywhere with systemwide remote wireless, air & water system management web portal and mobile applications
Heat, Cool, Auto (includes Vacation mode), Emergency Heat and Fan Only
Full-color, 4.7"x1" depth LCD touchscreen display. Attractive, modern design with interchangeable faceplates. Easy-to-read icons and text. Indoor/outdoor temperature display
Lifestyle-based scheduling with 1-touch mode selection (including 1-touch vacation mode). Auto-mode control automatically switches between Heat and Cool mode to maintain set temperature range. Continuous Fan Mode ensures even temperatures and continuous air filtering throughout home. Humidification (auto/manual) & Dehumidification. Plus Low Ambient Cooling
Shown with black, includes easy to change soft white and taupe
